Past Projects - Metal Stamping Dies
Anderdon Tool designs and builds metal stamping dies for automotive components. We specialize in parts for automotive underbody and structural components including frame cross members, I/P brackets, hood hinges, and reinforcement brackets.
-

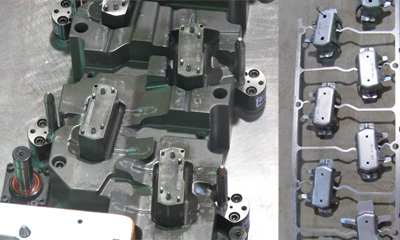

Eleven Station Progressive Die
Backet hood hinge body side
0.063 x 11.475” coil
11 station, single die sets
9300 lbs
Industry: Automotive -

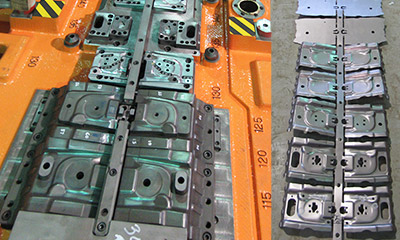

Nine Station Progressive Die
Roof rail bracket
0.055 x 20” coil
9 station, single die sets
14,240 lbs
Industry: Automotive -

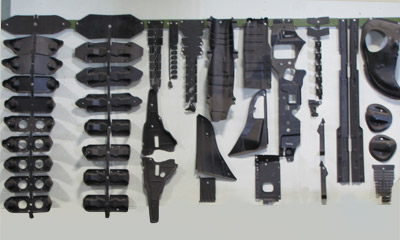

Progressive Die Strips and Sample Parts
Structural and underbody components
Transfer die stampings, line die stampings, and progressive die strips
Industry: Automotive -

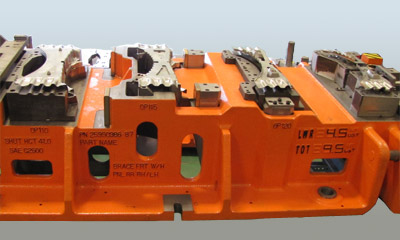

Transfer Die
Brace front wheel house panel
0.047 x 25.60” coil
6 stage, 2 out transfer die
19,000 lbs
Industry: Automotive -

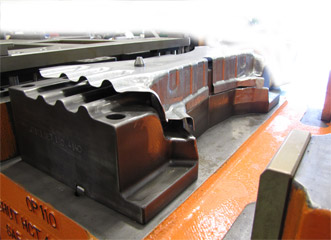

Transfer Die Station
Brace front wheel house panel
Industry: Automotive -

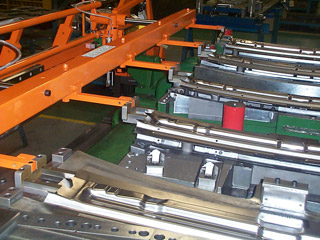

Transfer Die with Automation
Roof cross member
Industry: Automotive -
Prototype Machining
Exhaust manifold
Material: Delrin
Industry: Alternative Energy
Hydrogen fuel
Please contact Anderdon Tool for your tooling requirements.
